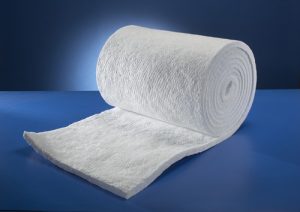

Ceramic Blanket
A ceramic Blanket is a lightweight needled blanket, that provides an effective solution to a wide range of thermal insulation applications. It offers low thermal conductivity and superior insulation performance.
The ceramic Blanket is made from high purity Alumina, Silica, and Zirconia. It is a highly efficient insulator with extremely low shrinkage characteristics.
| PHYSICAL PROPERTIES | |||
| Grade | 1100oC | ||
| Colour | White | ||
| Density ( Kg/m3 ) | 64 | 96 | 128 |
| MECHANICAL PROPERTIES | |||
| Tensile Strength ( Kg/cm2) | >0.15 | >0.25 | >0.4 |
| Mean Fibre Dia (micron) | 2.6 – 3.5 | ||
| Shot content (%) | < 20 | ||
| Linear Shrinkage (%) at 1100oC for 24hrs | < 1.5 | ||
| Thermal Conductivity (W/moK) Mean Temp (Typical) | |||
| At 200oC | 0.055 | 0.050 | 0.045 |
| At 400oC | 0.100 | 0.085 | 0.080 |
| At 500oC | 0.160 | 0.145 | 0.120 |
| At 800oC | 0.280 | 0.210 | 0.180 |
Applications:
- Fire protection
- Process heater lining
- Boiler and turbine insulation linings
- Fuel cell insulation
- Chimney insulation
- Storage heater tank insulation
- Aluminum transfer conveyor.
- Heat shielding for automotive parts
- Furnace and kiln sealing, packing, and backup insulation
Features:
- Smoke-free Inorganic
- High-temperature durability
- Excellent thermal insulation
- High-temperature stability
- Resist thermal shock
- Lightweight and low heat storage
- Chemical stability
- Low thermal conductivity
- Good sound absorption
- Good confrontation to tearing
